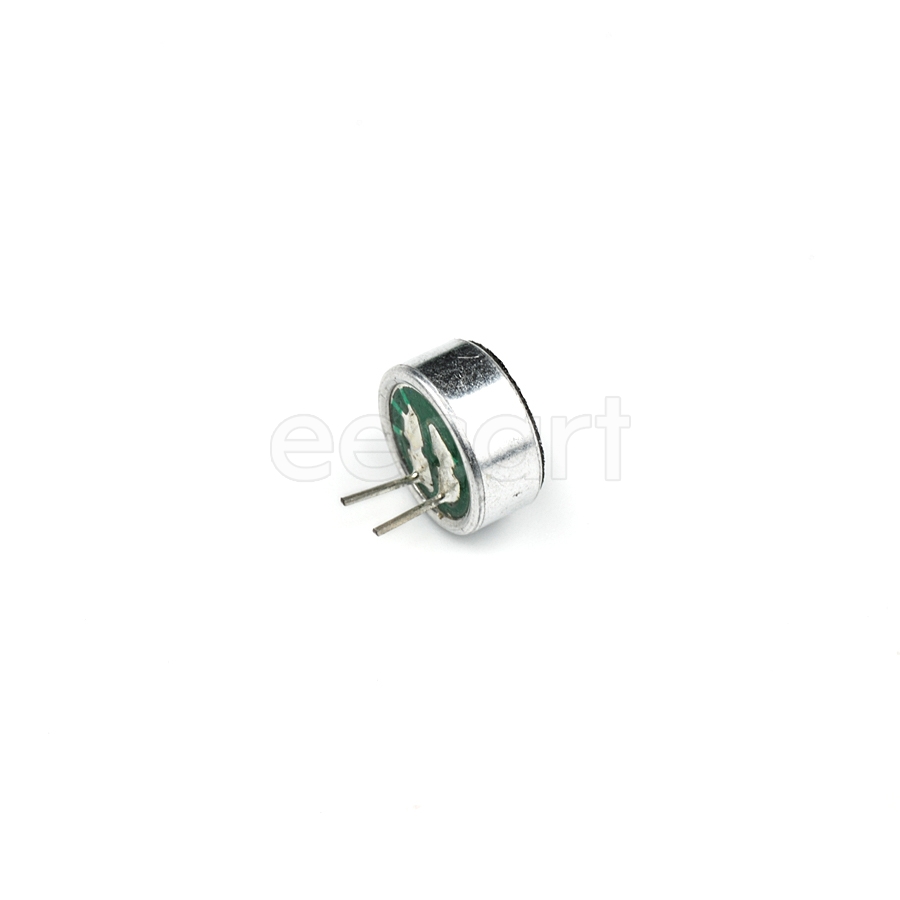

CMA-4544PF-W
Manufacturer:
Same Sky
Mfr.Part #:
CMA-4544PF-W
Datasheet:
Description:
Microphones Through Hole Circular, Round 20 Hz -44 dB
| Parameter | Value |
|---|---|
| Length | 9.7 mm |
| Width | 9.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Height | 4.5 mm |
| Packaging | Bulk |
| Voltage Rating | 10 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Impedance | 2.2 kΩ |
| Frequency | 20 Hz |
| Operating Supply Voltage | 3 V |
| Output Type | Analog |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Operating Supply Current | 500 µA |
| Direction(Counting Sequence) | Omnidirectional |
| Max Frequency | 20 kHz |
| Shape | Circular, Round |
| Schedule B | 8518100000 |
| Directional Properties | Omnidirectional |
| Current Rating | 500 µA |
| Max Supply Voltage | 10 V |
| Min Supply Voltage | 3 V |
| Depth | 4.5 mm |
| Sensitivity | -44 dB |
| Diameter | 9.7 mm |
Stock: 1653
Distributors
pcbx
pcbxUnit Price$0.38814
Ext.Price$0.38814
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38814 | $0.38814 |
| 10 | $0.28384 | $2.83840 |
| 25 | $0.27861 | $6.96525 |
| 50 | $0.27348 | $13.67400 |
| 100 | $0.26845 | $26.84500 |
| 300 | $0.25213 | $75.63900 |
| 500 | $0.23681 | $118.40500 |
| 1000 | $0.22314 | $223.14000 |
| 3000 | $0.20992 | $629.76000 |
| 5000 | $0.19749 | $987.45000 |
